Lightolier 3 3/4″ Non-IC Frame-In Kits – 2002P1

Product Description

Downlighting – Standard – Lytecaster

Lytecaster basic series Frame-in kits

Lytecaster’s wide selection of reflector trims and Frame-in kit options allows the designer great flexibility in achieving all the beauty and drama Line Voltage lighting can deliver.
The color rendering of Line Voltage sources ranges all the way from the warm tones of conventional A-lamps to the brilliant light of tungsten halogen. Downlights with A-lamps produce smooth, soft-edged beams with minimal glare that are excellent for general lighting in virtually any application. Lytecaster’s precise optics and high quality reflector finishes maximize the output of these economical sources for the greatest possible efficiency.

Lytecaster

Lytecaster’s unmatched selection, performance and flexibility make it the first choice for the most demanding residential and light commercial lighting applications. Lytecaster FIK’s offer all installation options: IC, Non-IC, AirSeal® IC and Deep IC.

• Compatible with all Lytecaster Line Voltage Reflector Trims and 6 3/4″ low voltage trims.
• Deliver the highest wattages and greatest adjustability in both IC and Non-IC installations.
• Provide deeply recessed lamps with the best cut-off and glare control.

Standard non-IC

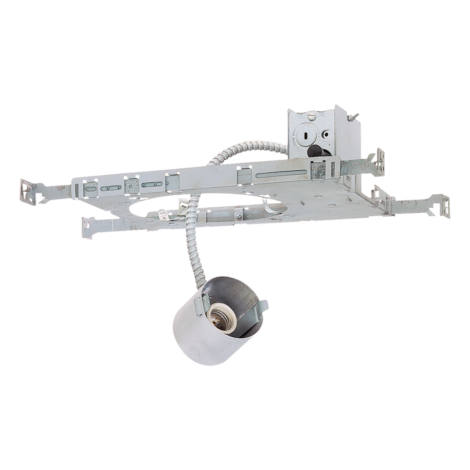

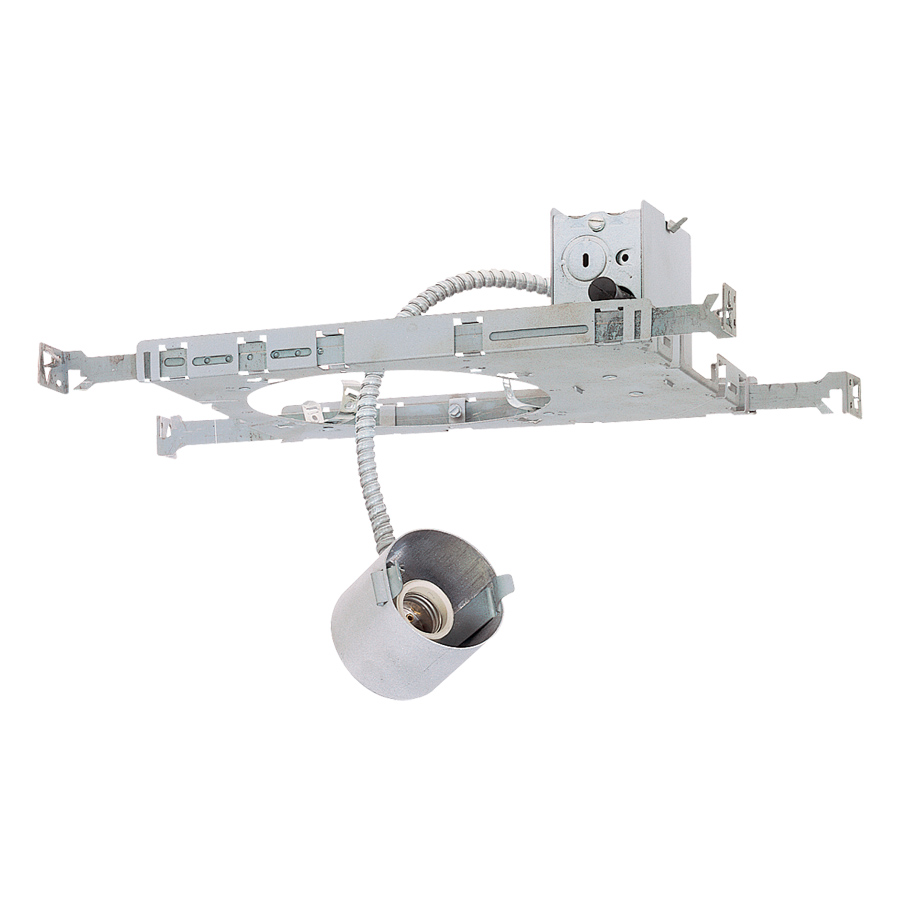

Designed for new construction where insulation will not be installed. This steel frame will accommodate ceilings up to 1″ thick. Steel mounting bars will extend from 13″ to 27″. Integral wood joist nailing tabs, Integral cable clamps for nonmetallic (Romex®) or armored (BX®) cable, mounting bars lock to T-bar ceiling runners without accessories, 1102P1 UL listed for through wiring.

FIK/RD/PW/THERMLY PROT USE/2005,05WH,08. 3 3/4″ Aperture Incandescent Standard Frame-In Kit
