Product Description
Downlighting – Specification – Lytecaster
Lytecaster Performance incandescent housings
4″, 5″, 7″ and 8″ housings
Uniframe’s three lensed products have a variety of lens styles. UL listed for wet locations, these trims provide an Incandescent-like light source in an energy efficient package ideal for showers, spas or outdoor overhangs.

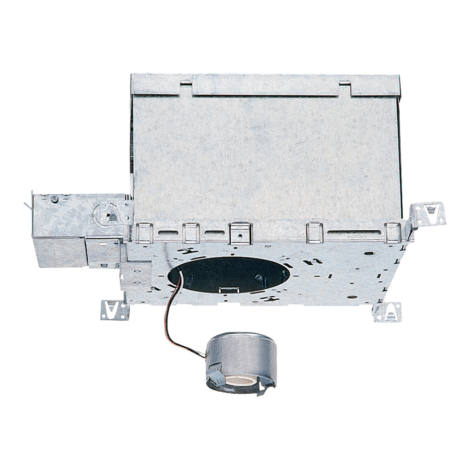

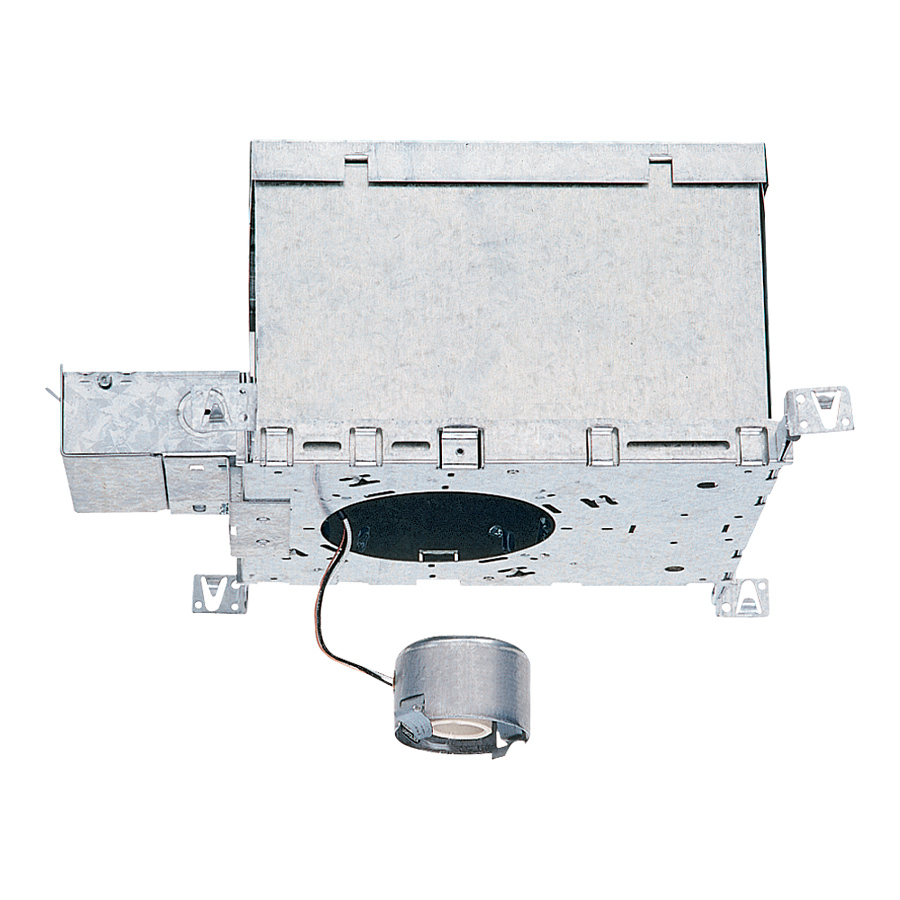

Standard IC, deep IC and AirSeal® IC
Designed for new construction where insulation will be in direct contact with the fixture. IC housings designed to offer a full range of lighting performance in fully insulated ceiling applications up to 1″ thick. Installed appearance of Deep IC precisely matches Lytecaster Non-IC Frame-in Kits. Fully gasketed AirSeal® IC housings minimize air leakage for compliance with MEC and WSEC. Mounting bars lock to T-bar ceiling runners without accessories, UL listed for through wiring, integral cable clamps for nonmetallic (Romex®) cable.
AirSeal® | 2000IC 2000AIC | 1000IC 1000AICM | 1100IC 1100AICM | 1100DICM 1100DAICM |
---|---|---|---|---|
Cut out (A) | 3 11/16" | 5 1/8" | 6 13/16" | 6 13/16" |
Width (W) | 7 1/2" | 9" | 9" | 9" |
Length (L) | 10 1/4" | 15 1/2" | 15 1/2" | 15 1/2" |
Depth (D) | 5 1/2" | 7 5/16" | 7 5/16" | 9 1/4" |
INSL CEILING INC FIK/THERMAL. 5″ Aperture Incandescent Insulated Ceiling Frame-In Kit
