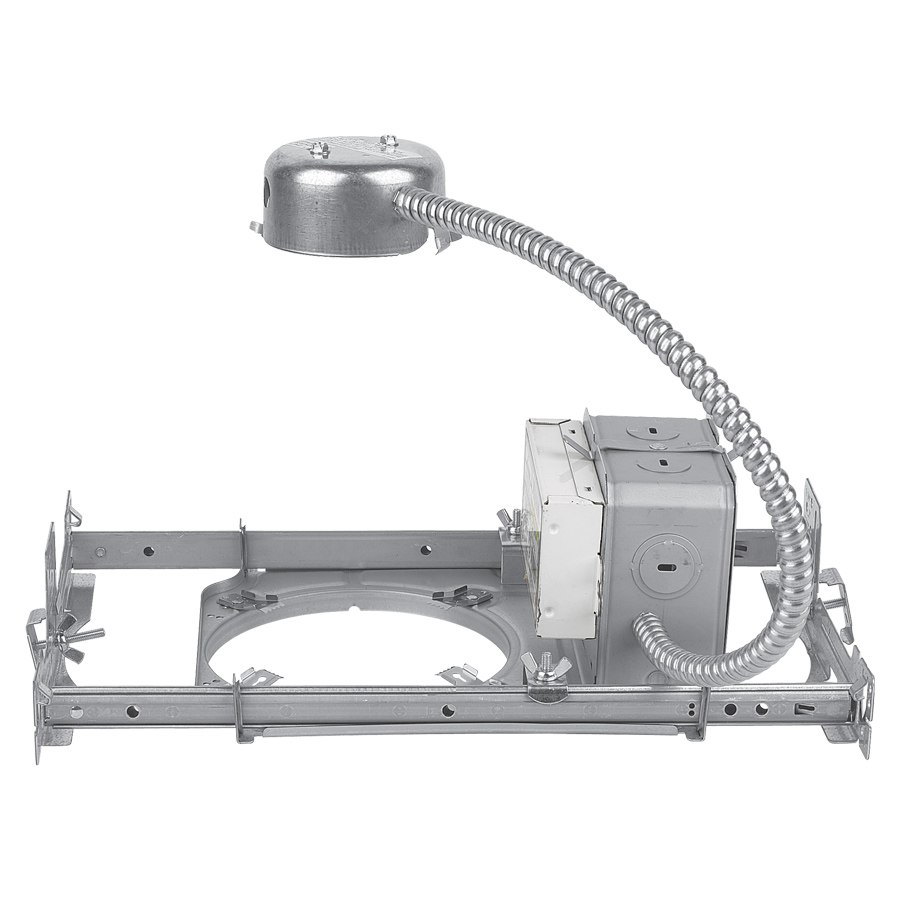

Lightolier 5″ Non-IC Frame-In Kits – Compact Fluorescent – 1001F18UEM
Product Description
Downlighting – Specification – Lytecaster
Uniframe CFL housings 5″ & 6 ¾” Emergency frame-in kits
Uniframe emergency lighting provides 60% light output for up to 90 minutes. This allows visibility in areas of egress to allow people to move safely in the event of an emergency.
Mounting – grid ceiling
Tool free mounting in grid ceilings. Galvanized Steel interlocking slide bars adjust to 24 1/8″ long accommodating 24″ O.C. Ceiling Grid. Adjustable speed clamps for positive attachment to grid ceiling systems.
Mounting – wood joist ceiling
Integral nailing tabs, alignment guides, fastener holes and bendable strapping guides for wood joist installation. Galvanized Steel interlocking slide bars adjust from 12 15/16″ to 24 1/8″ long to accommodate 16″ and 24“ O.C. joist spacing, with or without strapping.
Uniframe 5″ & 6 ¾” new construction – emergency
Designed for new construction where insulation will not be installed. Frame-in kit accommodates ceilings up to 1 1/2″ thick. “Push In / Twist Out” Stainless Steel trim clips hold reflector flush to ceiling.
Universal electronic ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protection, class “P” thermally protected, class “A” sound rating. Minimum starting temperature is 0°F.
Emergency battery: 90 minute battery backup at 650 lumens, complete with charge indicator light and integrated test switch.
| Cut out | Width | Length | Depth | Total watts | Amp (120/277V) | ||
| 1001F18UEM | 18w Triple Tube GX24q-2 Base 120v – 0.17amp max 277v – 0.08amp max | 5 1/4" | 9 5/8" | 12 15/16" | See specification sheet | 20w | 0.17/0.08 |
| 1001F26UEM | 26w Triple Tube GX24q-3 Base 120v – 0.24amp max 277v – 0.11amp max | 5 1/4" | 9 5/8" | 12 15/16" | See specification sheet | 29w | 0.29/0.11 |
| 1101F2642UEM | 26w Quad/Triple Tube G24q-3/GX24q-3 Base 120v – 0.33amp max 277v – 0.14amp max 32w Triple Tube GX24q-3 Base 120v – 0.40amp max 277v – 0.17amp max 42w Triple Tube GX24q-4 Base 120v – 0.53amp max 277v – 0.23amp max | 6 15/16" | 9 5/8" | 12 15/16" | See specification sheet | 29w 36w 46w | 0.24/0.11 0.31/0.13 0.38/0.17 |
| Emergency lumen output | ||
|---|---|---|
| Uniframe wattage | EM Lamp lumens | EM # |
| 18 | 350 | I-42-EM-J |
| 26 | 425 | I-42-EM-J |
| 32 | 600 | I-42-EM-J |
| 42 | 750 | I-42-EM-J |
UNIFRAME 5″ 18W FIK W/EM PK. 5″ Aperture, 1 Light, Compact Fluorescent, Non-IC, Emergency, Frame-In Kit
